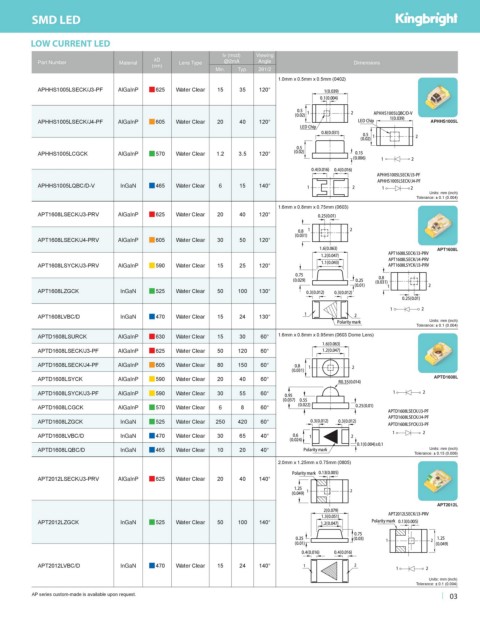

LOW CURRENT LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @2mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
1.0mm x 0.5mm x 0.5mm (0402)
APHHS1005LSECK/J3-PF AlGaInP g 625 Water Clear 15 35 120°

APHHS1005LSECK/J4-PF AlGaInP g 605 Water Clear 20 40 120° APHHS1005L

APHHS1005LCGCK AlGaInP g 570 Water Clear 1.2 3.5 120°

APHHS1005LQBC/D-V InGaN g 465 Water Clear 6 15 140°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
1.6mm x 0.8mm x 0.75mm (0603)
APT1608LSECK/J3-PRV AlGaInP g 625 Water Clear 20 40 120°

APT1608LSECK/J4-PRV AlGaInP g 605 Water Clear 30 50 120°
APT1608L

APT1608LSYCK/J3-PRV AlGaInP g 590 Water Clear 15 25 120°

APT1608LZGCK InGaN g 525 Water Clear 50 100 130°

APT1608LVBC/D InGaN g 470 Water Clear 15 24 130°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
APTD1608LSURCK AlGaInP g 630 Water Clear 15 30 60° 1.6mm x 0.8mm x 0.95mm (0603 Dome Lens)
APTD1608LSECK/J3-PF AlGaInP g 625 Water Clear 50 120 60°

APTD1608LSECK/J4-PF AlGaInP g 605 Water Clear 80 150 60°
APTD1608LSYCK AlGaInP g 590 Water Clear 20 40 60° APTD1608L
APTD1608LSYCK/J3-PF AlGaInP g 590 Water Clear 30 55 60°
APTD1608LCGCK AlGaInP g 570 Water Clear 6 8 60°

APTD1608LZGCK InGaN g 525 Water Clear 250 420 60°
APTD1608LVBC/D InGaN g 470 Water Clear 30 65 40°
APTD1608LQBC/D InGaN g 465 Water Clear 10 20 40° Units: mm (inch)
Tolerance: ± 0.15 (0.006)
2.0mm x 1.25mm x 0.75mm (0805)

APT2012LSECK/J3-PRV AlGaInP g 625 Water Clear 20 40 140°

APT2012L

APT2012LZGCK InGaN g 525 Water Clear 50 100 140°

APT2012LVBC/D InGaN g 470 Water Clear 15 24 140°
Units: mm (inch)
Tolerance: ± 0.1 (0.004)
AP series custom-made is available upon request. 03
