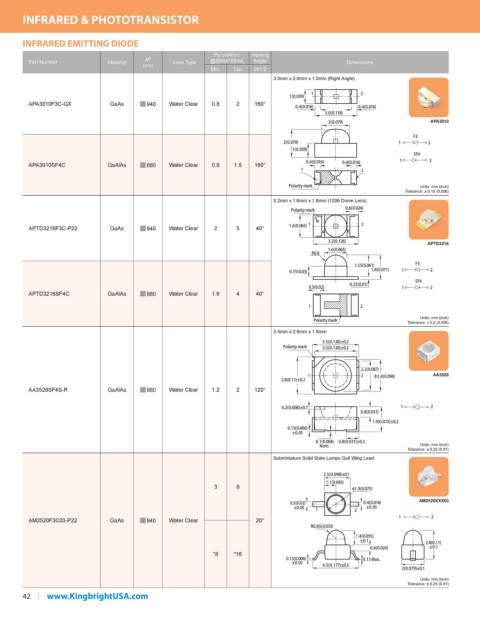

INFRARED & PHOTOTRANSISTOR

INFRARED EMITTING DIODE
Po (mW/sr) Viewing
Part Number Material λP Lens Type @20mA*50mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.0mm x 2.0mm x 1.0mm (Right Angle)

APA3010F3C-GX GaAs g 940 Water Clear 0.8 2 160°

APA3010

APA3010SF4C GaAlAs g 880 Water Clear 0.8 1.5 160°

Units: mm (inch)
Tolerance: ± 0.15 (0.006)
3.2mm x 1.6mm x 1.8mm (1206 Dome Lens)

APTD3216F3C-P22 GaAs g 940 Water Clear 2 5 40°
APTD3216

APTD3216SF4C GaAlAs g 880 Water Clear 1.6 4 40°

Units: mm (inch)
Tolerance: ± 0.2 (0.008)
3.5mm x 2.8mm x 1.9mm

AA3528

AA3528SF4S-R GaAlAs g 880 Water Clear 1.2 2 120°

Units: mm (inch)
Tolerance: ± 0.25 (0.01)
Subminiature Solid State Lamps Gull Wing Lead

3 8
AM2520XXX03

AM2520F3C03-P22 GaAs g 940 Water Clear 20°

*8 *16

Units: mm (inch)
Tolerance: ± 0.25 (0.01)
