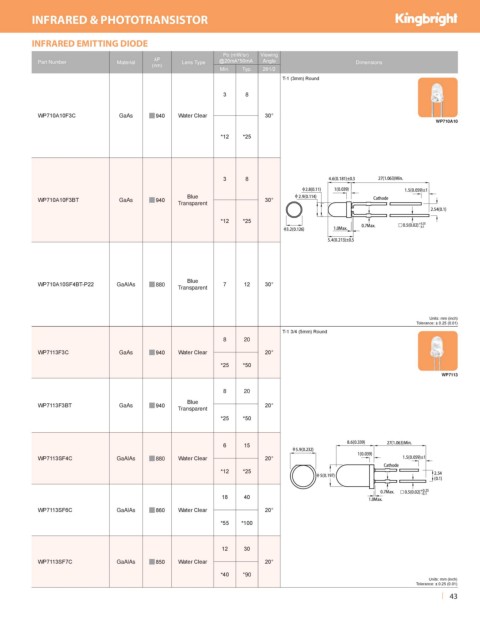

INFRARED & PHOTOTRANSISTOR

INFRARED EMITTING DIODE
Po (mW/sr) Viewing
Part Number Material λP Lens Type @20mA*50mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Round
3 8

WP710A10F3C GaAs g 940 Water Clear 30°
WP710A10
*12 *25

3 8

Blue
WP710A10F3BT GaAs g 940 30°
Transparent
*12 *25

Blue
WP710A10SF4BT-P22 GaAlAs g 880 7 12 30°
Transparent

Units: mm (inch)
Tolerance: ± 0.25 (0.01)
T-1 3/4 (5mm) Round
8 20
WP7113F3C GaAs g 940 Water Clear 20°
*25 *50
WP7113

8 20
Blue
WP7113F3BT GaAs g 940 20°
Transparent
*25 *50

6 15
WP7113SF4C GaAlAs g 880 Water Clear 20°

*12 *25

18 40
WP7113SF6C GaAlAs g 860 Water Clear 20°
*55 *100

12 30
WP7113SF7C GaAlAs g 850 Water Clear 20°
*40 *90
Units: mm (inch)
Tolerance: ± 0.25 (0.01)
