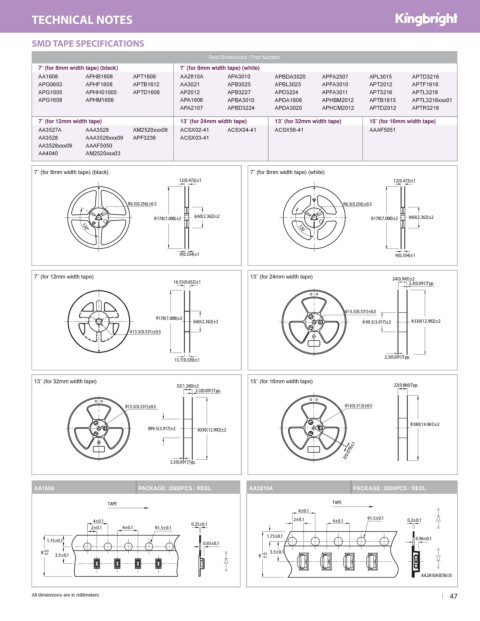

         SMD TAPE SPECIFICATIONS
                                                      Reel Dimensions / Part Number
           7˝ (for 8mm width tape) (black)     7˝ (for 8mm width tape) (white)
           AA1608      APHB1608    APT1608     AA2810A     APA3010     APBDA3020   APFA2507    APL3015    APTD3216
           APG0603     APHF1608    APTB1612    AA3021      APB3025     APBL3025    APFA3010    APT2012    APTF1616
           APG1005     APHHS1005   APTD1608    AP2012      APB3227     APD3224     APFA3011    APT3216    APTL3216
           APG1608     APHM1608                APA1606     APBA3010    APDA1806    APHBM2012   APTB1615   APTL3216xxx01
                                               APA2107     APBD3224    APDA3020    APHCM2012   APTD2012   APTR3216
           7˝ (for 12mm width tape)            13˝ (for 24mm width tape)   13˝ (for 32mm width tape)   15˝ (for 16mm width tape)
           AA3527A     AAA3528     AM2520xxx09  ACSX02-41  ACSX04-41   ACSX56-41               AAAF5051
           AA3528      AAA3528xxx09  APF3236   ACSX03-41
           AA3528xxx09  AAAF5050
           AA4040      AM2520xxx03

          7˝ (for 8mm width tape) (black)                        7˝ (for 8mm width tape) (white)















          7˝ (for 12mm width tape)                               13˝ (for 24mm width tape)














          13˝ (for 32mm width tape)                              15˝ (for 16mm width tape)















          AA1608                    PACKAGE: 2000PCS / REEL     AA2810A                    PACKAGE: 2000PCS / REEL















         All dimensions are in millimeters.                                                                         47
