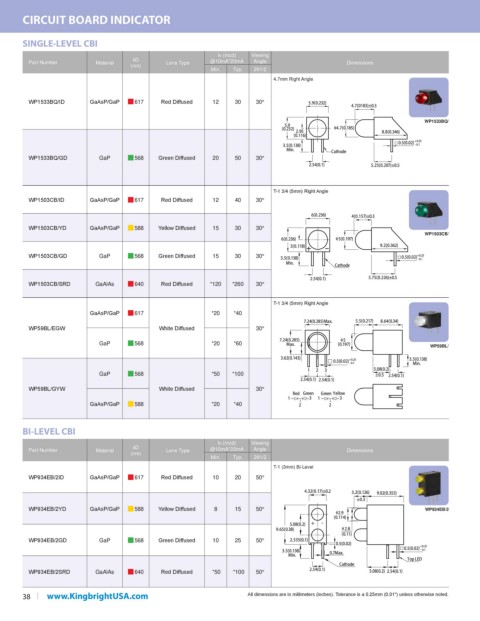

Page 40 - Kingbright 2022-2023 catalog
P. 40

CIRCUIT BOARD INDICATOR


       SINGLE-LEVEL CBI
                                                        Iv (mcd)             Viewing
                                   λD
        Part Number      Material          Lens Type   @10mA*20mA  Angle                 Dimensions
                                  (nm)
                                                       Min.  Typ.  2θ1/2
                                                                       4.7mm Right Angle

        WP1533BQ/ID     GaAsP/GaP  g 617  Red Diffused  12   30   30°

                                                                                                             WP1533BQ/



        WP1533BQ/GD       GaP     g 568  Green Diffused  20  50   30°




                                                                       T-1 3/4 (5mm) Right Angle
        WP1503CB/ID     GaAsP/GaP  g 617  Red Diffused  12   40   30°



        WP1503CB/YD     GaAsP/GaP  g 588  Yellow Diffused  15  30  30°
                                                                                                             WP1503CB/

        WP1503CB/GD       GaP     g 568  Green Diffused  15  30   30°



        WP1503CB/SRD     GaAlAs   g 640   Red Diffused  *120  *260  30°

                                                                       T-1 3/4 (5mm) Right Angle
                        GaAsP/GaP  g 617               *20   *40

        WP59BL/EGW                        White Diffused          30°
                          GaP     g 568                *20   *60                                               WP59BL/



                          GaP     g 568                *50  *100

        WP59BL/GYW                        White Diffused          30°
                        GaAsP/GaP  g 588               *20   *40


       BI-LEVEL CBI
                                                        Iv (mcd)             Viewing
        Part Number      Material  λD      Lens Type   @10mA*20mA  Angle                 Dimensions
                                  (nm)
                                                       Min.  Typ.  2θ1/2
                                                                       T-1 (3mm) Bi-Level
        WP934EB/2ID     GaAsP/GaP  g 617  Red Diffused  10   20   50°



        WP934EB/2YD     GaAsP/GaP  g 588  Yellow Diffused  8  15  50°                                        WP934EB/2



        WP934EB/2GD       GaP     g 568  Green Diffused  10  25   50°



        WP934EB/2SRD     GaAlAs   g 640   Red Diffused   *50   *100  50°

       38    www.KingbrightUSA.com                              All dimensions are in millimeters (inches). Tolerance is ± 0.25mm (0.01") unless otherwise noted.
