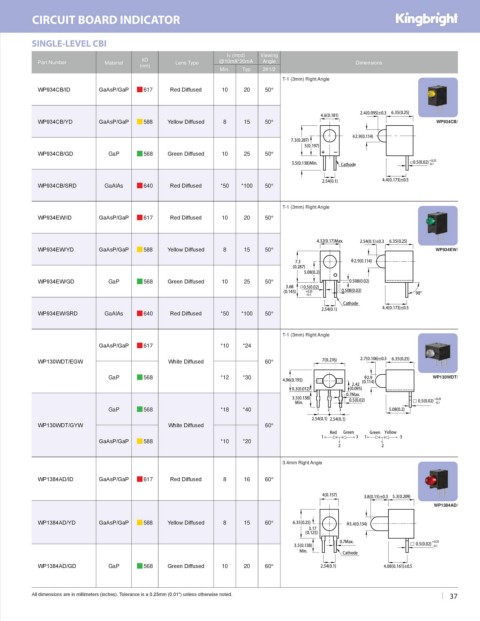

SINGLE-LEVEL CBI
Iv (mcd) Viewing
λD
Part Number Material Lens Type @10mA*20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Right Angle
WP934CB/ID GaAsP/GaP g 617 Red Diffused 10 20 50°

WP934CB/YD GaAsP/GaP g 588 Yellow Diffused 8 15 50° WP934CB/

WP934CB/GD GaP g 568 Green Diffused 10 25 50°

WP934CB/SRD GaAlAs g 640 Red Diffused *50 *100 50°

T-1 (3mm) Right Angle
WP934EW/ID GaAsP/GaP g 617 Red Diffused 10 20 50°

WP934EW/YD GaAsP/GaP g 588 Yellow Diffused 8 15 50° WP934EW/

WP934EW/GD GaP g 568 Green Diffused 10 25 50°

WP934EW/SRD GaAlAs g 640 Red Diffused *50 *100 50°

T-1 (3mm) Right Angle
GaAsP/GaP g 617 *10 *24

WP130WDT/EGW White Diffused 60°

GaP g 568 *12 *30 WP130WDT/

GaP g 568 *18 *40
WP130WDT/GYW White Diffused 60°

GaAsP/GaP g 588 *10 *20

3.4mm Right Angle

WP1384AD/ID GaAsP/GaP g 617 Red Diffused 8 16 60°

WP1384AD/

WP1384AD/YD GaAsP/GaP g 588 Yellow Diffused 8 15 60°

WP1384AD/GD GaP g 568 Green Diffused 10 20 60°

All dimensions are in millimeters (inches). Tolerance is ± 0.25mm (0.01") unless otherwise noted. 37
