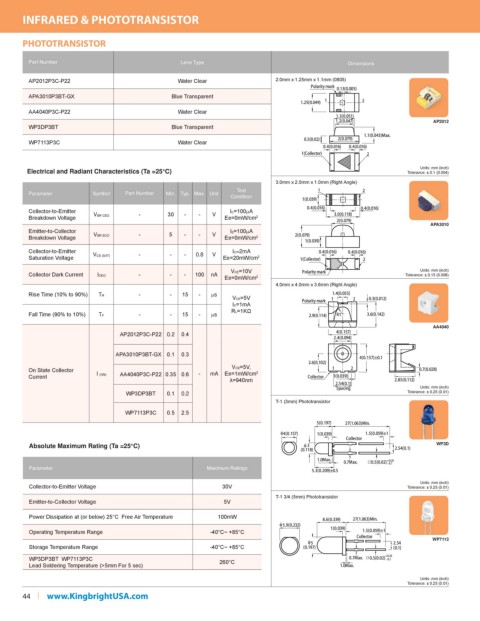

Page 46 - Kingbright 2022-2023 catalog

INFRARED & PHOTOTRANSISTOR

PHOTOTRANSISTOR

Part Number Lens Type Dimensions

AP2012P3C-P22 Water Clear 2.0mm x 1.25mm x 1.1mm (0805)

APA3010P3BT-GX Blue Transparent
AA4040P3C-P22 Water Clear
AP2012
WP3DP3BT Blue Transparent
WP7113P3C Water Clear

Units: mm (inch)
Electrical and Radiant Characteristics (Ta =25°C) Tolerance: ± 0.1 (0.004)
3.0mm x 2.0mm x 1.0mm (Right Angle)
Test
Parameter Symbol Part Number Min. Typ. Max. Unit
Condition
Collector-to-Emitter - 30 - - V IC=100mA
Breakdown Voltage VBR CEO Ee=0mW/cm 2
APA3010
Emitter-to-Collector - 5 - - V IE=100mA
Breakdown Voltage VBR ECO Ee=0mW/cm 2

Collector-to-Emitter - - - 0.8 V IC=2mA
Saturation Voltage VCE (SAT) Ee=20mW/cm 2
VCE=10V Units: mm (inch)
Collector Dark Current ICEO - - - 100 nA Tolerance: ± 0.15 (0.006)
Ee=0mW/cm 2
4.0mm x 4.0mm x 3.6mm (Right Angle)
Rise Time (10% to 90%) TR - - 15 - ms
VCE=5V
IC=1mA
RL=1KΩ
Fall Time (90% to 10%) TF - - 15 - ms
AA4040
AP2012P3C-P22 0.2 0.4

APA3010P3BT-GX 0.1 0.3
VCE=5V,
On State Collector - mA Ee=1mW/cm 2
Current I (ON) AA4040P3C-P22 0.35 0.6
λ=940nm
Units: mm (inch)
WP3DP3BT 0.1 0.2 Tolerance: ± 0.25 (0.01)
T-1 (3mm) Phototransistor
WP7113P3C 0.5 2.5

Absolute Maximum Rating (Ta =25°C) WP3D

Parameter Maximum Ratings

Units: mm (inch)
Collector-to-Emitter Voltage 30V Tolerance: ± 0.25 (0.01)
T-1 3/4 (5mm) Phototransistor
Emitter-to-Collector Voltage 5V
Power Dissipation at (or below) 25°C Free Air Temperature 100mW
Operating Temperature Range -40°C~ +85°C
WP7113
Storage Temperature Range -40°C~ +85°C
WP3DP3BT WP7113P3C 260°C
Lead Soldering Temperature (>5mm For 5 sec)
Units: mm (inch)
Tolerance: ± 0.25 (0.01)
