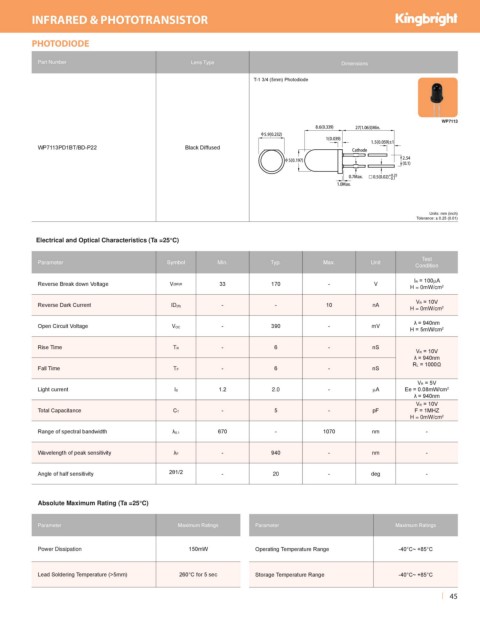

Page 47 - Kingbright 2022-2023 catalog

INFRARED & PHOTOTRANSISTOR

PHOTODIODE

Part Number Lens Type Dimensions

T-1 3/4 (5mm) Photodiode

WP7113

WP7113PD1BT/BD-P22 Black Diffused

Units: mm (inch)
Tolerance: ± 0.25 (0.01)

Electrical and Optical Characteristics (Ta =25°C)

Test
Parameter Symbol Min. Typ. Max. Unit
Condition
IR = 100mA
Reverse Break down Voltage V (BR)R 33 170 - V
H = 0mW/cm 2
VR = 10V
Reverse Dark Current ID(R) - - 10 nA
H = 0mW/cm 2
λ = 940nm
Open Circuit Voltage VOC - 390 - mV
H = 5mW/cm 2
Rise Time TR - 6 - nS
VR = 10V
λ = 940nm
RL = 1000Ω
Fall Time TF - 6 - nS
VR = 5V
Light current IS 1.2 2.0 - mA Ee = 0.08mW/cm 2
λ = 940nm
VR = 10V
Total Capacitance CT - 5 - pF F = 1MHZ
H = 0mW/cm 2
Range of spectral bandwidth λ0.1 670 - 1070 nm -

Wavelength of peak sensitivity λ p - 940 - nm -

Angle of half sensitivity 2θ1/2 - 20 - deg -

Absolute Maximum Rating (Ta =25°C)

Parameter Maximum Ratings Parameter Maximum Ratings

Power Dissipation 150mW Operating Temperature Range -40°C~ +85°C

Lead Soldering Temperature (>5mm) 260°C for 5 sec Storage Temperature Range -40°C~ +85°C

45
