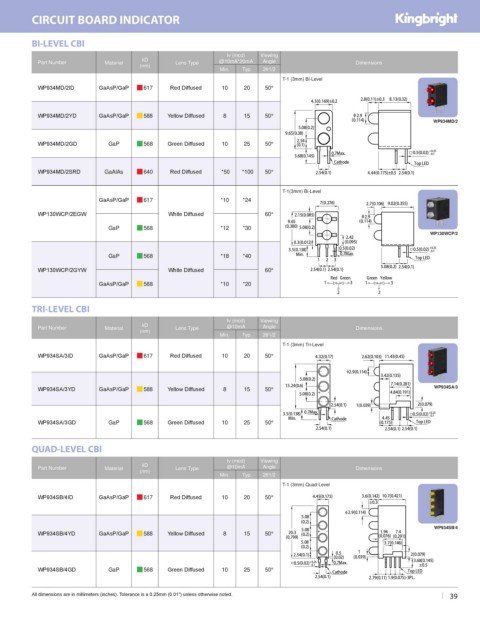

Page 41 - Kingbright 2022-2023 catalog

CIRCUIT BOARD INDICATOR

BI-LEVEL CBI
Iv (mcd) Viewing
λD
Part Number Material Lens Type @10mA*20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Bi-Level
WP934MD/2ID GaAsP/GaP g 617 Red Diffused 10 20 50°

WP934MD/2YD GaAsP/GaP g 588 Yellow Diffused 8 15 50°
WP934MD/2

WP934MD/2GD GaP g 568 Green Diffused 10 25 50°

WP934MD/2SRD GaAlAs g 640 Red Diffused *50 *100 50°

T-1(3mm) Bi-Level
GaAsP/GaP g 617 *10 *24

WP130WCP/2EGW White Diffused 60°
GaP g 568 *12 *30
WP130WCP/2

GaP g 568 *18 *40
WP130WCP/2GYW White Diffused 60°

GaAsP/GaP g 588 *10 *20

TRI-LEVEL CBI

Iv (mcd) Viewing
λD
Part Number Material Lens Type @10mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Tri-Level
WP934SA/3ID GaAsP/GaP g 617 Red Diffused 10 20 50°

WP934SA/3YD GaAsP/GaP g 588 Yellow Diffused 8 15 50° WP934SA/3

WP934SA/3GD GaP g 568 Green Diffused 10 25 50°

QUAD-LEVEL CBI
Iv (mcd) Viewing
λD
Part Number Material Lens Type @10mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Quad-Level
WP934SB/4ID GaAsP/GaP g 617 Red Diffused 10 20 50°

WP934SB/4
WP934SB/4YD GaAsP/GaP g 588 Yellow Diffused 8 15 50°

WP934SB/4GD GaP g 568 Green Diffused 10 25 50°

All dimensions are in millimeters (inches). Tolerance is ± 0.25mm (0.01") unless otherwise noted. 39
