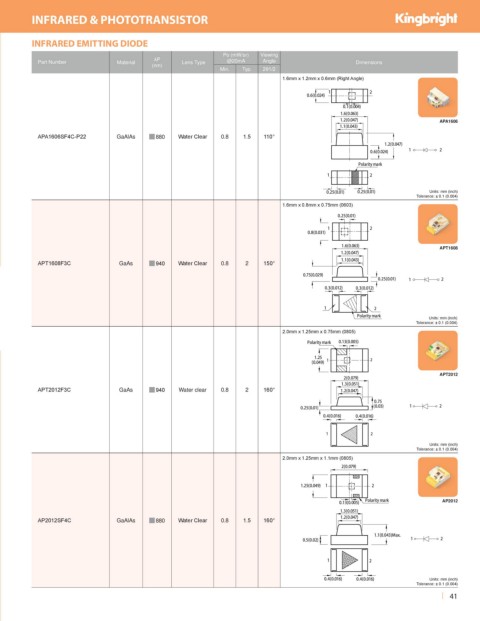

INFRARED EMITTING DIODE
Po (mW/sr) Viewing
Part Number Material λP Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
1.6mm x 1.2mm x 0.6mm (Right Angle)

APA1606
APA1606SF4C-P22 GaAlAs g 880 Water Clear 0.8 1.5 110°

Units: mm (inch)
Tolerance: ± 0.1 (0.004)
1.6mm x 0.8mm x 0.75mm (0603)

APT1608
APT1608F3C GaAs g 940 Water Clear 0.8 2 150°

Units: mm (inch)
Tolerance: ± 0.1 (0.004)
2.0mm x 1.25mm x 0.75mm (0805)

APT2012

APT2012F3C GaAs g 940 Water clear 0.8 2 160°

Units: mm (inch)
Tolerance: ± 0.1 (0.004)
2.0mm x 1.25mm x 1.1mm (0805)

AP2012

AP2012SF4C GaAlAs g 880 Water Clear 0.8 1.5 160°

Units: mm (inch)
Tolerance: ± 0.1 (0.004)
