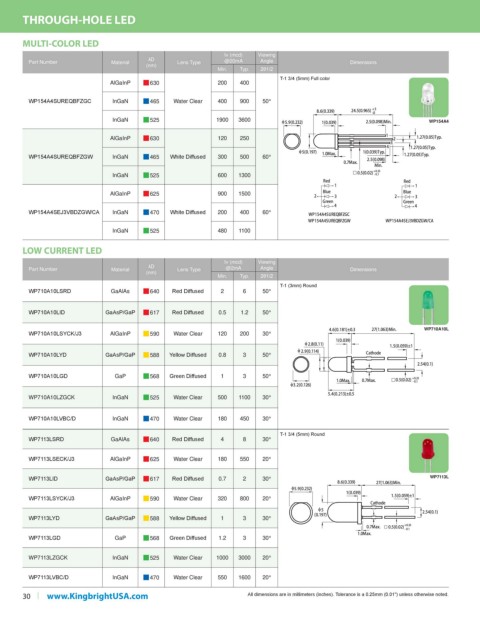

Page 32 - Kingbright 2022-2023 catalog

THROUGH-HOLE LED

MULTI-COLOR LED
Iv (mcd) Viewing
Part Number Material λD Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 3/4 (5mm) Full color
AlGaInP g 630 200 400

WP154A4SUREQBFZGC InGaN g 465 Water Clear 400 900 50°
InGaN g 525 1900 3600 WP154A4

AlGaInP g 630 120 250

WP154A4SUREQBFZGW InGaN g 465 White Diffused 300 500 60°

InGaN g 525 600 1300

AlGaInP g 625 900 1500

WP154A4SEJ3VBDZGW/CA InGaN g 470 White Diffused 200 400 60°

InGaN g 525 480 1100

LOW CURRENT LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @2mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Round
WP710A10LSRD GaAlAs g 640 Red Diffused 2 6 50°
WP710A10LID GaAsP/GaP g 617 Red Diffused 0.5 1.2 50°

WP710A10L
WP710A10LSYCK/J3 AlGaInP g 590 Water Clear 120 200 30°

WP710A10LYD GaAsP/GaP g 588 Yellow Diffused 0.8 3 50°

WP710A10LGD GaP g 568 Green Diffused 1 3 50°

WP710A10LZGCK InGaN g 525 Water Clear 500 1100 30°

WP710A10LVBC/D InGaN g 470 Water Clear 180 450 30°

T-1 3/4 (5mm) Round
WP7113LSRD GaAlAs g 640 Red Diffused 4 8 30°

WP7113LSECK/J3 AlGaInP g 625 Water Clear 180 550 20°

WP7113LID GaAsP/GaP g 617 Red Diffused 0.7 2 30° WP7113L

WP7113LSYCK/J3 AlGaInP g 590 Water Clear 320 800 20°

WP7113LYD GaAsP/GaP g 588 Yellow Diffused 1 3 30°

WP7113LGD GaP g 568 Green Diffused 1.2 3 30°

WP7113LZGCK InGaN g 525 Water Clear 1000 3000 20°

WP7113LVBC/D InGaN g 470 Water Clear 550 1600 20°
