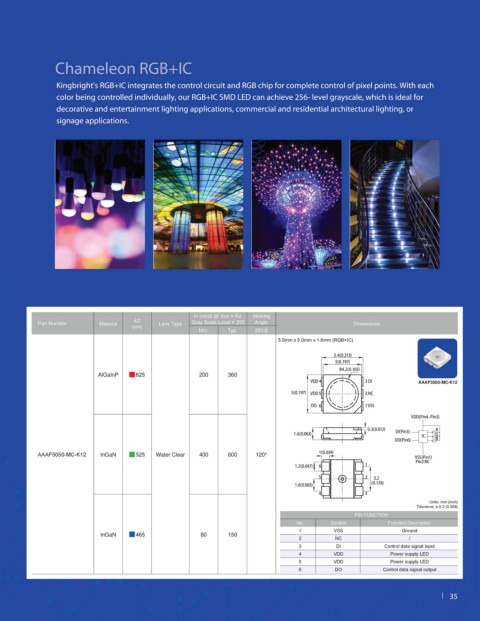

Page 37 - Kingbright 2022-2023 catalog
P. 37
@Category-Chameleon(o).pdf 1 6/22/21 11:18 AM
Iv (mcd) @ VDD = 5V, Viewing
Part Number Material λD Lens Type Gray Scale Level = 255 Angle Dimensions
(nm)
Min. Typ. 2θ1/2
5.0mm x 5.0mm x 1.6mm (RGB+IC)
AlGaInP g 625 200 360
AAAF5050-MC-K12
AAAF5050-MC-K12 InGaN g 525 Water Clear 400 600 120°
Units: mm (inch)
Tolerance: ± 0.2 (0.008)
PIN FUNCTION
No. Symbol Function Description
1 VSS Ground
InGaN g 465 80 150
2 NC /
3 DI Control data signal input
4 VDD Power supply LED
5 VDD Power supply LED
6 DO Control data signal output
