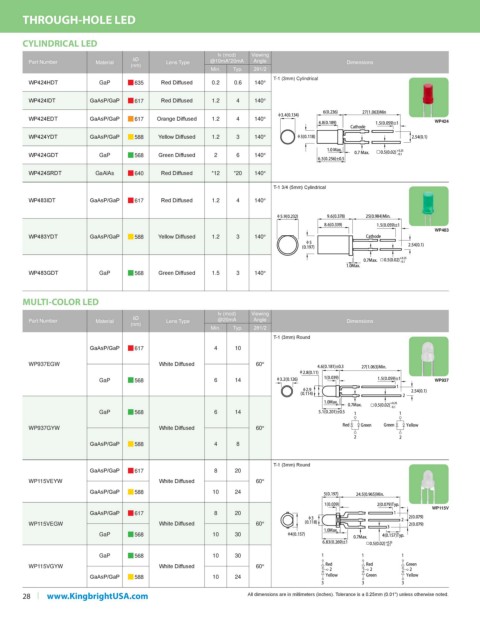

Page 30 - Kingbright 2022-2023 catalog

THROUGH-HOLE LED

CYLINDRICAL LED
Iv (mcd) Viewing
Part Number Material λD Lens Type @10mA*20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Cylindrical
WP424HDT GaP g 635 Red Diffused 0.2 0.6 140°
WP424IDT GaAsP/GaP g 617 Red Diffused 1.2 4 140°

WP424EDT GaAsP/GaP g 617 Orange Diffused 1.2 4 140° WP424

WP424YDT GaAsP/GaP g 588 Yellow Diffused 1.2 3 140°

WP424GDT GaP g 568 Green Diffused 2 6 140°

WP424SRDT GaAlAs g 640 Red Diffused *12 *20 140°
T-1 3/4 (5mm) Cylindrical
WP483IDT GaAsP/GaP g 617 Red Diffused 1.2 4 140°

WP483
WP483YDT GaAsP/GaP g 588 Yellow Diffused 1.2 3 140°

WP483GDT GaP g 568 Green Diffused 1.5 3 140°

MULTI-COLOR LED

Iv (mcd) Viewing
λD
Part Number Material Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Round
GaAsP/GaP g 617 4 10
WP937EGW White Diffused 60°
GaP g 568 6 14 WP937

GaP g 568 6 14

WP937GYW White Diffused 60°
GaAsP/GaP g 588 4 8

T-1 (3mm) Round
GaAsP/GaP g 617 8 20
WP115VEYW White Diffused 60°
GaAsP/GaP g 588 10 24
WP115V
GaAsP/GaP g 617 8 20
WP115VEGW White Diffused 60°
GaP g 568 10 30

GaP g 568 10 30
WP115VGYW White Diffused 60°
GaAsP/GaP g 588 10 24
28 www.KingbrightUSA.com All dimensions are in millimeters (inches). Tolerance is ± 0.25mm (0.01") unless otherwise noted.
