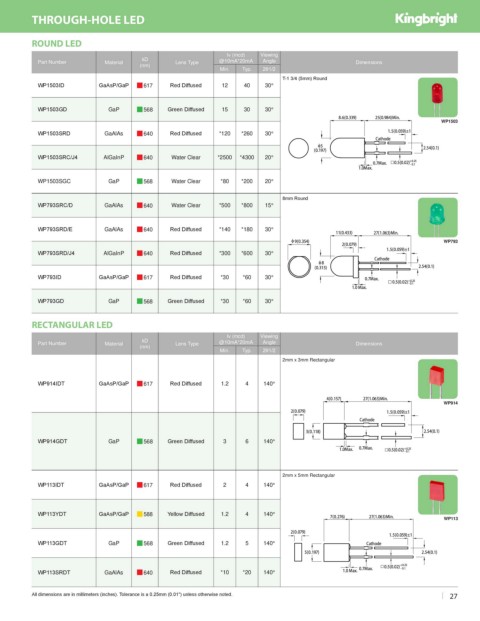

Page 29 - Kingbright 2022-2023 catalog

THROUGH-HOLE LED

ROUND LED
Iv (mcd) Viewing
Part Number Material λD Lens Type @10mA*20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 3/4 (5mm) Round
WP1503ID GaAsP/GaP g 617 Red Diffused 12 40 30°

WP1503GD GaP g 568 Green Diffused 15 30 30°
WP1503
WP1503SRD GaAlAs g 640 Red Diffused *120 *260 30°

WP1503SRC/J4 AlGaInP g 640 Water Clear *2500 *4300 20°

WP1503SGC GaP g 568 Water Clear *80 *200 20°

8mm Round
WP793SRC/D GaAlAs g 640 Water Clear *500 *800 15°

WP793SRD/E GaAlAs g 640 Red Diffused *140 *180 30°
WP793
WP793SRD/J4 AlGaInP g 640 Red Diffused *300 *600 30°

WP793ID GaAsP/GaP g 617 Red Diffused *30 *60 30°

WP793GD GaP g 568 Green Diffused *30 *60 30°

RECTANGULAR LED
Iv (mcd) Viewing
λD
Part Number Material Lens Type @10mA*20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
2mm x 3mm Rectangular

WP914IDT GaAsP/GaP g 617 Red Diffused 1.2 4 140°

WP914

WP914GDT GaP g 568 Green Diffused 3 6 140°

2mm x 5mm Rectangular
WP113IDT GaAsP/GaP g 617 Red Diffused 2 4 140°

WP113YDT GaAsP/GaP g 588 Yellow Diffused 1.2 4 140°
WP113

WP113GDT GaP g 568 Green Diffused 1.2 5 140°

WP113SRDT GaAlAs g 640 Red Diffused *10 *20 140°

All dimensions are in millimeters (inches). Tolerance is ± 0.25mm (0.01") unless otherwise noted. 27
