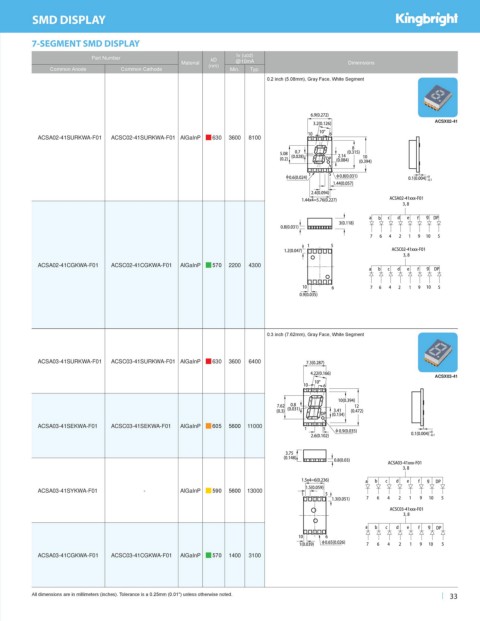

7-SEGMENT SMD DISPLAY

Part Number λD Iv (ucd)
Material @10mA Dimensions
Common Anode Common Cathode (nm) Min. Typ.
0.2 inch (5.08mm), Gray Face, White Segment

ACSX02-41
ACSA02-41SURKWA-F01 ACSC02-41SURKWA-F01 AlGaInP g 630 3600 8100

ACSA02-41CGKWA-F01 ACSC02-41CGKWA-F01 AlGaInP g 570 2200 4300

0.3 inch (7.62mm), Gray Face, White Segment

ACSA03-41SURKWA-F01 ACSC03-41SURKWA-F01 AlGaInP g 630 3600 6400

ACSX03-41

ACSA03-41SEKWA-F01 ACSC03-41SEKWA-F01 AlGaInP g 605 5600 11000

ACSA03-41SYKWA-F01 - AlGaInP g 590 5600 13000

ACSA03-41CGKWA-F01 ACSC03-41CGKWA-F01 AlGaInP g 570 1400 3100

All dimensions are in millimeters (inches). Tolerance is ± 0.25mm (0.01") unless otherwise noted. 33
