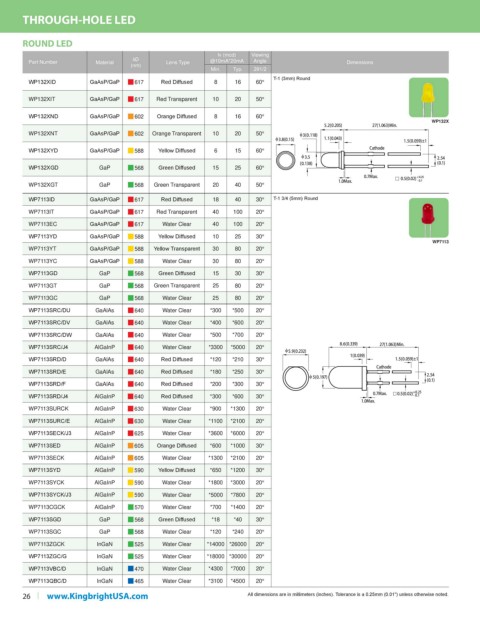

Page 28 - Kingbright 2022-2023 catalog

THROUGH-HOLE LED

ROUND LED
Iv (mcd) Viewing
Part Number Material λD Lens Type @10mA*20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Round
WP132XID GaAsP/GaP g 617 Red Diffused 8 16 60°
WP132XIT GaAsP/GaP g 617 Red Transparent 10 20 50°

WP132XND GaAsP/GaP g 602 Orange Diffused 8 16 60°
WP132X
WP132XNT GaAsP/GaP g 602 Orange Transparent 10 20 50°
WP132XYD GaAsP/GaP g 588 Yellow Diffused 6 15 60°

WP132XGD GaP g 568 Green Diffused 15 25 60°

WP132XGT GaP g 568 Green Transparent 20 40 50°
WP7113ID GaAsP/GaP g 617 Red Diffused 18 40 30° T-1 3/4 (5mm) Round
WP7113IT GaAsP/GaP g 617 Red Transparent 40 100 20°
WP7113EC GaAsP/GaP g 617 Water Clear 40 100 20°
WP7113YD GaAsP/GaP g 588 Yellow Diffused 10 25 30°
WP7113
WP7113YT GaAsP/GaP g 588 Yellow Transparent 30 80 20°
WP7113YC GaAsP/GaP g 588 Water Clear 30 80 20°
WP7113GD GaP g 568 Green Diffused 15 30 30°
WP7113GT GaP g 568 Green Transparent 25 80 20°
WP7113GC GaP g 568 Water Clear 25 80 20°
WP7113SRC/DU GaAlAs g 640 Water Clear *300 *500 20°
WP7113SRC/DV GaAlAs g 640 Water Clear *400 *600 20°
WP7113SRC/DW GaAlAs g 640 Water Clear *500 *700 20°
WP7113SRC/J4 AlGaInP g 640 Water Clear *3300 *5000 20°
WP7113SRD/D GaAlAs g 640 Red Diffused *120 *210 30°
WP7113SRD/E GaAlAs g 640 Red Diffused *180 *250 30°
WP7113SRD/F GaAlAs g 640 Red Diffused *200 *300 30°
WP7113SRD/J4 AlGaInP g 640 Red Diffused *300 *600 30°
WP7113SURCK AlGaInP g 630 Water Clear *900 *1300 20°
WP7113SURC/E AlGaInP g 630 Water Clear *1100 *2100 20°
WP7113SECK/J3 AlGaInP g 625 Water Clear *3600 *6000 20°
WP7113SED AlGaInP g 605 Orange Diffused *600 *1000 30°
WP7113SECK AlGaInP g 605 Water Clear *1300 *2100 20°
WP7113SYD AlGaInP g 590 Yellow Diffused *650 *1200 30°
WP7113SYCK AlGaInP g 590 Water Clear *1800 *3000 20°
WP7113SYCK/J3 AlGaInP g 590 Water Clear *5000 *7800 20°
WP7113CGCK AlGaInP g 570 Water Clear *700 *1400 20°
WP7113SGD GaP g 568 Green Diffused *18 *40 30°
WP7113SGC GaP g 568 Water Clear *120 *240 20°
WP7113ZGCK InGaN g 525 Water Clear *14000 *26000 20°
WP7113ZGC/G InGaN g 525 Water Clear *18000 *30000 20°
WP7113VBC/D InGaN g 470 Water Clear *4300 *7000 20°
WP7113QBC/D InGaN g 465 Water Clear *3100 *4500 20°
26 www.KingbrightUSA.com All dimensions are in millimeters (inches). Tolerance is ± 0.25mm (0.01") unless otherwise noted.
