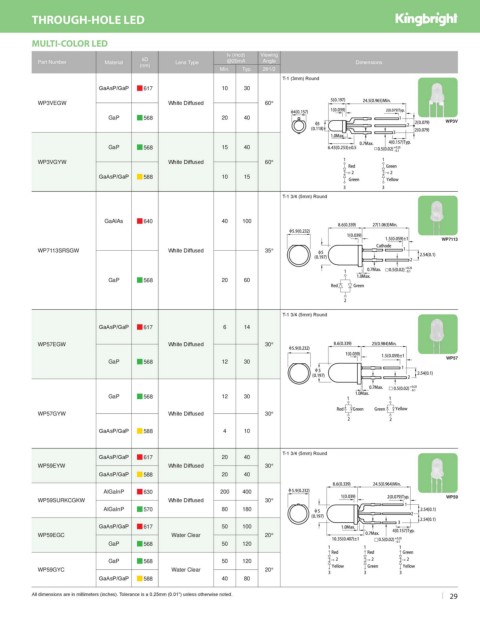

Page 31 - Kingbright 2022-2023 catalog

THROUGH-HOLE LED

MULTI-COLOR LED
Iv (mcd) Viewing
Part Number Material λD Lens Type @20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Round
GaAsP/GaP g 617 10 30

WP3VEGW White Diffused 60°
GaP g 568 20 40
WP3V

GaP g 568 15 40
WP3VGYW White Diffused 60°

GaAsP/GaP g 588 10 15

T-1 3/4 (5mm) Round

GaAlAs g 640 40 100

WP7113
WP7113SRSGW White Diffused 35°

GaP g 568 20 60

T-1 3/4 (5mm) Round
GaAsP/GaP g 617 6 14
WP57EGW White Diffused 30°

WP57
GaP g 568 12 30

GaP g 568 12 30
WP57GYW White Diffused 30°

GaAsP/GaP g 588 4 10

T-1 3/4 (5mm) Round
GaAsP/GaP g 617 20 40
WP59EYW White Diffused 30°
GaAsP/GaP g 588 20 40

AlGaInP g 630 200 400
WP59SURKCGKW White Diffused 30° WP59
AlGaInP g 570 80 180
GaAsP/GaP g 617 50 100
WP59EGC Water Clear 20°
GaP g 568 50 120

GaP g 568 50 120
WP59GYC Water Clear 20°
GaAsP/GaP g 588 40 80
All dimensions are in millimeters (inches). Tolerance is ± 0.25mm (0.01") unless otherwise noted. 29
