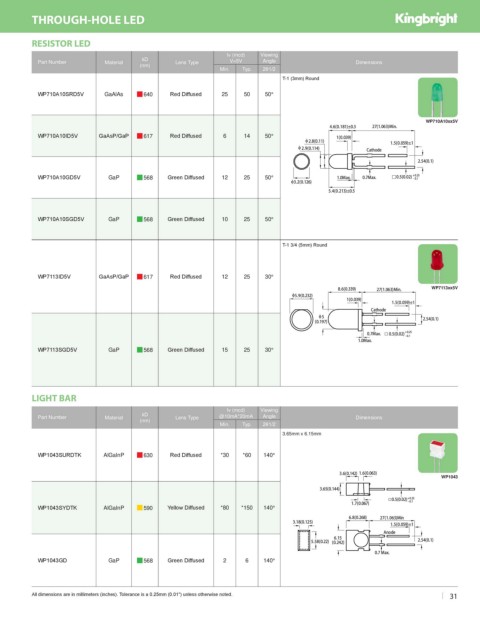

P. 33
THROUGH-HOLE LED
RESISTOR LED
Iv (mcd) Viewing
Part Number Material λD Lens Type V=5V Angle Dimensions
(nm)
Min. Typ. 2θ1/2
T-1 (3mm) Round
WP710A10SRD5V GaAlAs g 640 Red Diffused 25 50 50°
WP710A10xx5V
WP710A10ID5V GaAsP/GaP g 617 Red Diffused 6 14 50°
WP710A10GD5V GaP g 568 Green Diffused 12 25 50°
WP710A10SGD5V GaP g 568 Green Diffused 10 25 50°
T-1 3/4 (5mm) Round
WP7113ID5V GaAsP/GaP g 617 Red Diffused 12 25 30°
WP7113xx5V
WP7113SGD5V GaP g 568 Green Diffused 15 25 30°
LIGHT BAR
Iv (mcd) Viewing
Part Number Material λD Lens Type @10mA*20mA Angle Dimensions
(nm)
Min. Typ. 2θ1/2
3.65mm x 6.15mm
WP1043SURDTK AlGaInP g 630 Red Diffused *30 *60 140°
WP1043
WP1043SYDTK AlGaInP g 590 Yellow Diffused *80 *150 140°
WP1043GD GaP g 568 Green Diffused 2 6 140°
All dimensions are in millimeters (inches). Tolerance is ± 0.25mm (0.01") unless otherwise noted. 31
