2016-2017 Kingbright Catalog - page 64

TECHNICAL NOTES

ACDX02-41

ACDX03-41

ACDX04-41

AA3527A

AA3528, APED3528

AA3535

ACSX02-41

ACSX03-41

ACSX04-41

ACDA56-51

ACDX56-41

ACPSX04-41

AA4040

AAAF3529

AAAF5051

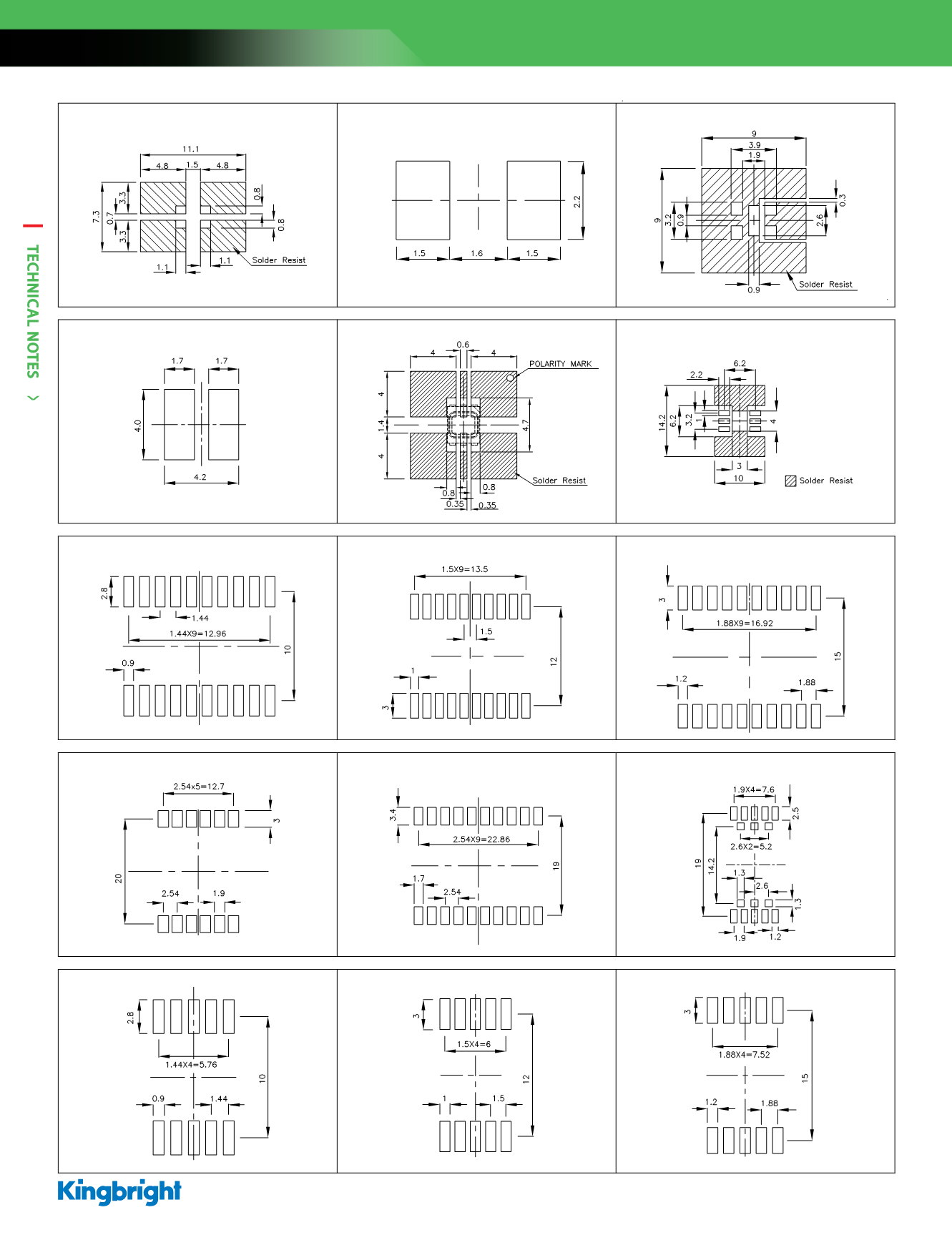

RECOMMENDED SOLDERING PATTERN

Recommended Soldering Pattern

NOTES: 1. All dimensions are in millimeters.

2. Tolerance is ±0.1mm unless otherwise noted.
