2016-2017 Kingbright Catalog - page 66

TECHNICAL NOTES

APG1608, APT1608, APTD1608

APGA1602

APHB1608

APHBM2012

APHCM2012

APL3015

APF3236

APFA3010

APG1005, APHHS1005

APTB1615, APTF1616

APTL3216

APTR3216

APT2012

APT3216, APTD3216

APTB1612

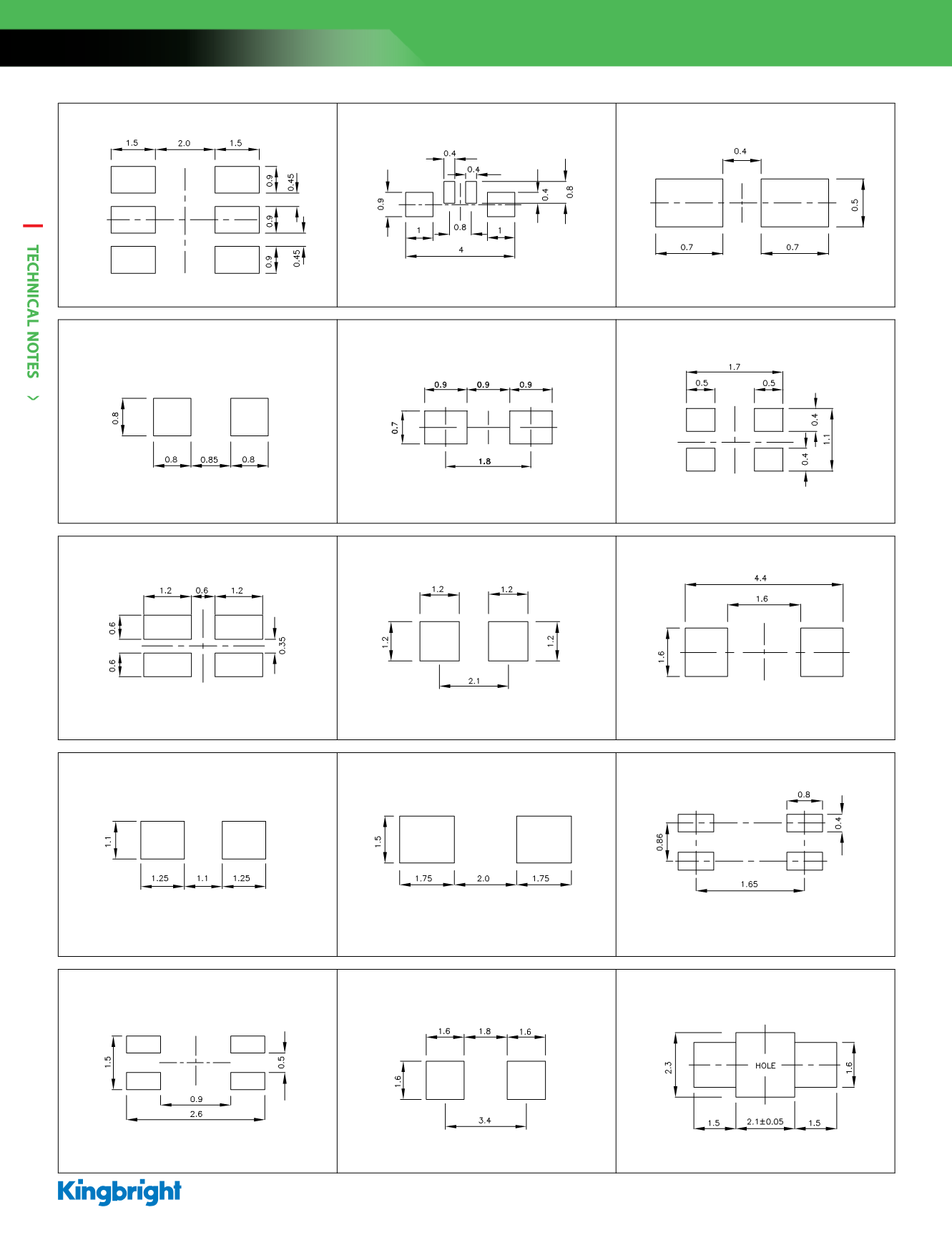

RECOMMENDED SOLDERING PATTERN

Recommended Soldering Pattern

NOTES: 1. All dimensions are in millimeters.

2. Tolerance is ±0.1mm unless otherwise noted.
