ULTRA THIN (2.4mm) 7-SEGMENT SMD DISPLAY (ACXA56-51 PACKAGE)

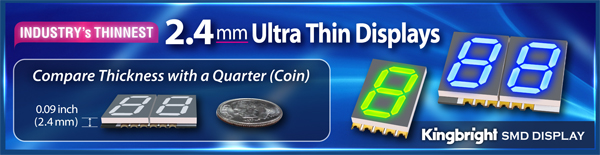

Kingbright Super Thin SMD Display 2.4mm Industry Thinnest
Kingbright Presents Industry’s Thinnest SMD LED Display, ACXA56-51 package
This extremely low profile 7-Segment SMD LED Display has total thickness of 2.4mm!

With continuous innovation in R&D, Kingbright has revolutionized today’s surface mount display technology with breakthrough development of industry’s thinnest 0.56 inch character height SMD LED display with thickness of 0.094 inch (2.4mm). This ultra-thin 7-Segment SMD display package overcomes the physical constraints and offers both crisp display features and high maneuverability. This package is ideal for applications in consumer electronics, handheld portables, appliances, and much more. This unique product is available in single digit, dual digits and in various colors. It is also packaged in tape and reel for SMT manufacturing to reduce production time and costs.

Features
  • Color selections: green, blue, red and yellow
  • Available in top mount and reverse mount configuration
  • Automation-friendly tape and reel package
  • 0.094 inch (2.4mm) total thickness
  • 0.56 inch (14.22mm) character height
  • Available in single and dual digit (Common Anode)
  • Gray face, white segment
  • Moisture Sensitivity Level 2a
  • Low power requirement
  • RoHS2 compliant
  • Reflow soldering
Click here for product details
