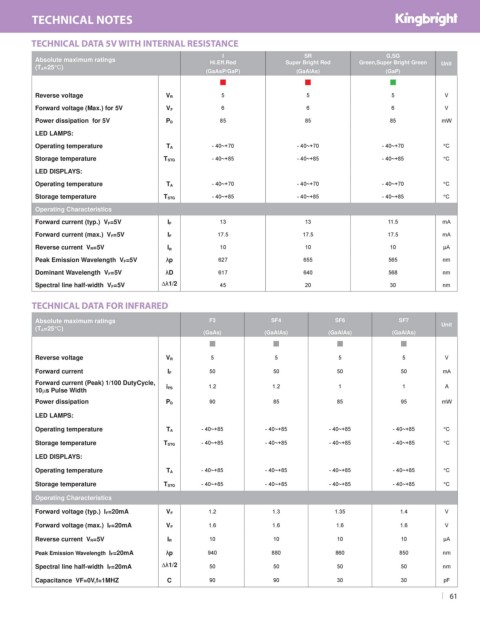

TECHNICAL NOTES

TECHNICAL DATA 5V WITH INTERNAL RESISTANCE
I SR G,SG
Absolute maximum ratings Hi.Eff.Red Super Bright Red Green,Super Bright Green
(TA=25°C) Unit
(GaAsP/GaP) (GaAlAs) (GaP)
g g g
Reverse voltage VR 5 5 5 V
Forward voltage (Max.) for 5V VF 6 6 6 V
Power dissipation for 5V PD 85 85 85 mW
LED LAMPS:
Operating temperature TA - 40~+70 - 40~+70 - 40~+70 °C

Storage temperature TSTG - 40~+85 - 40~+85 - 40~+85 °C
LED DISPLAYS:
Operating temperature TA - 40~+70 - 40~+70 - 40~+70 °C
Storage temperature TSTG - 40~+85 - 40~+85 - 40~+85 °C
Operating Characteristics
Forward current (typ.) VF=5V IF 13 13 11.5 mA
Forward current (max.) VF=5V IF 17.5 17.5 17.5 mA
Reverse current VR=5V I R 10 10 10 μA
Peak Emission Wavelength VF=5V λp 627 655 565 nm
Dominant Wavelength VF=5V λD 617 640 568 nm
Spectral line half-width VF=5V Dλ1/2 45 20 30 nm

TECHNICAL DATA FOR INFRARED
Absolute maximum ratings F3 SF4 SF6 SF7 Unit
(TA=25°C)
(GaAs) (GaAlAs) (GaAlAs) (GaAlAs)
g g g g
Reverse voltage VR 5 5 5 5 V
Forward current IF 50 50 50 50 mA
Forward current (Peak) 1/100 DutyCycle,
10ms Pulse Width iFS 1.2 1.2 1 1 A
Power dissipation PD 90 85 85 95 mW

LED LAMPS:
Operating temperature TA - 40~+85 - 40~+85 - 40~+85 - 40~+85 °C
Storage temperature TSTG - 40~+85 - 40~+85 - 40~+85 - 40~+85 °C
LED DISPLAYS:
Operating temperature TA - 40~+85 - 40~+85 - 40~+85 - 40~+85 °C
Storage temperature TSTG - 40~+85 - 40~+85 - 40~+85 - 40~+85 °C

Operating Characteristics
Forward voltage (typ.) IF=20mA VF 1.2 1.3 1.35 1.4 V
Forward voltage (max.) IF=20mA VF 1.6 1.6 1.6 1.6 V
Reverse current VR=5V IR 10 10 10 10 μA

Peak Emission Wavelength IF=20mA λp 940 880 860 850 nm
Spectral line half-width IF=20mA Dλ1/2 50 50 50 50 nm
Capacitance VF=0V,f=1MHZ C 90 90 30 30 pF
