TECHNICAL NOTES

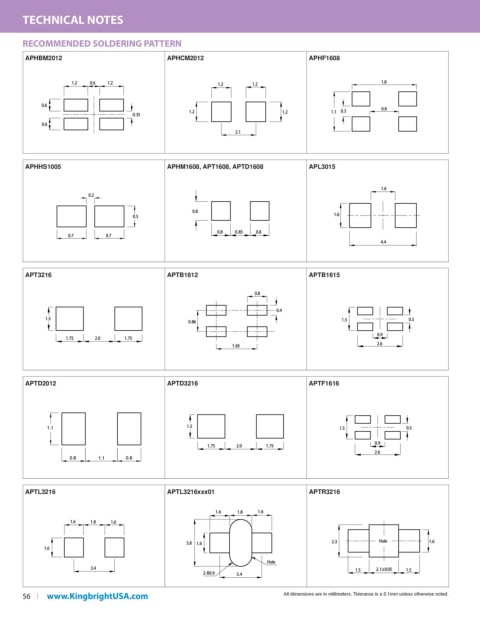

RECOMMENDED SOLDERING PATTERN
APHBM2012 APHCM2012 APHF1608
APHHS1005 APHM1608, APT1608, APTD1608 APL3015
APT3216 APTB1612 APTB1615
APTD2012 APTD3216 APTF1616
APTL3216 APTL3216xxx01 APTR3216
56 www.KingbrightUSA.com All dimensions are in millimeters. Tolerance is ± 0.1mm unless otherwise noted.
